We are extremely famous Stand Post Hydrant Manufacturers in Gujarat and we are a foremost organization when it comes to purchasing this type of fire fighting equipment.
Besides Stand Post Hydrant, we also help in providing Handline Nozzles and Foam Equipment at fairly reasonable prices.
Our talented team of professionals comprises proficient engineers and a skilled team of technicians who synchronize with patrons for understanding their requirements.
Further, we offer suitable products and systems and the stand post hydrant are made using top grade material at reasonable prices.
Also, our range is also in high demand due to its fine functionality, corrosion resistance and high tensile strength.
We are one of the most in-demand Stand Hydrants Suppliers in India and we have acquired a strong niche in the market due to our top class products.
The stand post hydrant are extremely useful and efficient in extinguishing large types of fires. Further, these systems have fairly distinct features such as -
Not only the product, but our dedicated team also offers installation services to the customers, which helps the customers in gaining an added advantage.
We are regarded as the most influential Stand Post Hydrant Manufacturers in Gujarat and due to our amazing teamwork by professionals, we have gained a strong foothold in the industry.
Innovative technology has been used for completing the undertaken task within a defined period of time and this equipment is installed at strategic points for facilitating delivery of water with tremendous pressure.
| Usage/Application | Fire Fighting |
| Connection | 3" or 4" Flange |
| Coating | Primer Coating and Final Coat |
| Inlet Connections | 3" / 4" Flange |
| Brand | KINDE FIRE |
| Country of Origin | Made in India |
| Minimum Order Quantity | 1 Piece |
| Inlet | 100 NB Flange as per ANSI |
| Outlet | 2 X 80 NB Flange as per ANSI |
| Outlet attachment |
Oblique Valve / Hydrant Valve |

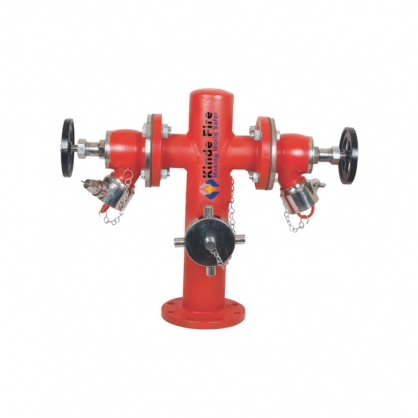

Hydrant Stand posts provide the means to connect Hydrant (Landing) valves onto the fire water mains. Hydrant Stand Posts are fitted using welded/ flanged joints onto the fire water main horizontal pipes, while the Hydrant valves are fitted onto outlet flanges of the same. Pumper Connection allows direct coupling of Hydrant supply to Pump Inlet of Fire Tender.
|
Type of Testing |
Parameter |
|
Hydro Testing of Body |
23 Kg/cm2(g) |
|
Water Seat Tightness Test |
18 Kg/cm2(g) |
|
Flow testing |
900 LPM for Single Outlet at 7 Kg/cm2(g) |
|
Model No. |
Description |
Inlet |
Outlet |
Approvals |
Material of |
|
Construction |
|||||
|
DOSP-1800-MS |
Double Outlet Stand Post |
Flanged Inet 100 mm |
2 Nos. 80mm NB Flange |
Hydrant ISI Marked |
MS ERW Pipe |
| Usage/Application | Fire Fighting |
| Connection | 3" or 4" Flange |
| Coating | Primer Coating and Final Coat |
| Inlet Connections | 3" / 4" Flange |
| Brand | KINDE FIRE |
| Country of Origin | Made in India |
| Minimum Order Quantity | 1 Piece |
Hydrant Stand posts provide the means to connect Hydrant (Landing) valves onto the fire water mains. Hydrant Stand Posts are fitted using welded/ flanged joints onto the fire water main horizontal pipes, while the Hydrant valves are fitted onto outlet flanges of the same. Pumper Connection allows direct coupling of Hydrant supply to Pump Inlet of Fire Tender.
|
Inlet |
100 NB Flange as per ANSI |
|
Outlet |
2 X 80 NB Flange as per ANSI |
|
Outlet attachment |
Oblique Valve / Hydrant Valve |
|
Material of Construction |
|
|
Pipe / Bends |
Mild Steel ERW Pipes |
|
Inlet Outlet Flange |
As per ANSI / ASTM A 105 / IS 2062 |
|
Type of Testing |
Parameter |
|
Hydro Testing of Body |
23 Kg/cm2(g) |
|
Water Seat Tightness Test |
18 Kg/cm2(g) |
|
Flow testing |
900 LPM for Single Outlet at 7 Kg/cm2(g) |
|
Model No. |
Description |
Inlet |
Outlet |
Approvals |
Material of |
|
Construction |
|||||
|
QOSP-1800-MS |
Quadra Outlet Stand Post |
Flanged Inet 150 mm |
4 Nos. 80mm NB Flange |
Hydrant ISI Marked |
MS ERW Pipe |
| Structure | Stand Post |
| Color | Red / Yellow |
| Material | MS |
| Usage/Application | Industrial |
| Test Pressure | 23 kg / Cm2 (g) |
| Flow Rate | As per Model Selected |
| Size | Depending upon requirements |
| Brand | KINDE FIRE |
| Type | Outdoor Fire Hydrant |
Hydrant Stand posts provide the means to connect Hydrant (Landing) valves onto the fire water mains. Hydrant Stand Posts are fitted using welded/ flanged joints onto the fire water main horizontal pipes, while the Hydrant valves are fitted onto outlet flanges of the same. Pumper Connection allows direct coupling of Hydrant supply to Pump Inlet of Fire Tender.
|
Inlet |
100 NB Flange as per ANSI |
|
Outlet |
2 X 80 NB Flange as per ANSI |
|
Outlet attachment |
Oblique Valve / Hydrant Valve |
|
Outlet Attachment |
Water Monitor Ranging from 1850 LPM to 3800 LPM |
|
Material of Construction |
|
|
Pipe / Bends |
Mild Steel ERW Pipes |
|
Inlet Outlet Flange |
As per ANSI / ASTM A 105 / IS 2062 |
|
Type of Testing |
Parameter |
|
Hydro Testing of Body |
23 Kg/cm2(g) |
|
Water Seat Tightness Test |
18 Kg/cm2(g) |
|
Flow testing |
900 LPM for Single Outlet at 7 Kg/cm2(g) |
|
Model No. |
Description |
Inlet |
Outlet |
Performance |
Material of |
|
Construction |
|||||
|
DOSPM-1750-WM |
Stand Post with Monitor |
Flanged Inet 150 mm |
100 mm NB Flange Output |
1750 LPM |
SS / GM / CS / MS |
|
DOSPM-2580-WM |
Stand Post with Monitor |
2580 LPM |
SS / GM / CS / MS |
||
|
DOSPM-1750-WFM |
Stand Post with Monitor |
1750 LPM |
SS / GM / CS / MS |
||
|
DOSPM-2580-WFM |
Stand Post with Monitor |
2580 |
SS / GM / CS / MS |
