We are the best Hose Reel Drum Manufacturers in Gujarat and we have amassed a strong customer base all across the market.
We have a dedicated team of specialists who are extremely keen to deliver top class services and products to the customers at fairly reasonable prices. We provide other top class products as well like Mobile Foam Trolley Unit and Fire Hose Box at reasonable prices.
Our team is highly trained and has an amazing level of penchant for precision and thus we leave no stone unturned in providing top class products to our customers.
Basically, a hose reel drum is a cylindrical shaped spindle which is constructed using either metal, plastic, or fiberglass.
Further, the function of the hose reel drum is to accomplish the objective of storing the hose pipe.
Add Mechatronics is one of the most sought after Hose Reel Suppliers in India and the hose reel drums are available in a wide variety of sizes, shapes and colors on our official site.
This hose reel can be installed in a garden, building, or industry and it is used for installation of the hosepipe.
Now, the hosepipe is a highly flexible tube that has been designed for carrying water from one place to another.
The hose reel drum and the hose reel are like companions for each other and they are like supporting agents for each other as the hose reel is placed on the hose reel drum only.
Now, in a building, both the hose reel drum and the hose pipe are extremely necessary as a hosepipe has been designed for transporting water from one place to another.
| Usage/Application | Fire Safety |
| Diameter | 25 mm, 19 mm, 38 mm |
| Reel Length | 25 / 30/ 36 / 40 / 50 meters |
| Packaging Type | Roll |
| Type | Hose reel drum, designed as per Indian Standard |
| Weight | Around 10 Kgs to 12 Kgs. |
| Pressure | 1.3 MPa |
| Features | Primer coating with Final Coat of Fire Red Color as per IS 5 |
| Brand | KINDE FIRE |
| Country of Origin | Made in India |
Hose reel drum is as per Indian Standard / Confirming to Indian Standard:-
| Usage/Application | Fire Safety |
| Diameter | 19, 25, 45, 50 mm |
| Reel Length | 19, 25, 30, 36, 40 & 50 meters |
| Packaging Type | Roll |
| Type | Hose Reel Drum with Swinging and Hose Inlet |
| Weight | 10 to 12 Kgs. |
| Pressure | 1.3 MPa |
| Country of Origin | Made in India |

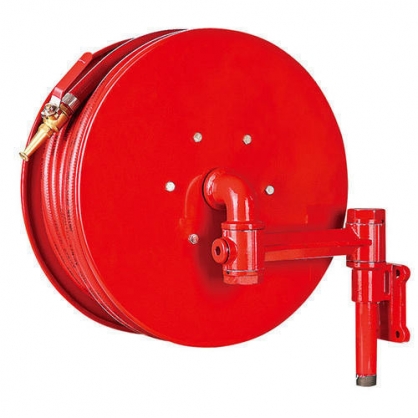

Hose reel drum is with hose inlet and swinging mechanism.
|
MODEL |
MSHSD-FTB-19-30 |
MSHSD—FTB-25-30 |
|
DISC DIAMETER |
565 MM |
565 MM |
|
INLET CONNECTION |
Fixed Pipe 1” BSP |
Fixed Pipe 1” BSP |
|
HOSE SIZE (DIA. X LENGTH) |
19 MM X 30 METERS |
25 MM X 30 METERS |
|
DIMENSION (A X B X C) |
235 MM X 565 MM X 160 MM |
250 MM X 565 MM X 190 MM |
|
MAX W. P. / TEST PRESSURE |
12 BAR / 18 BAR |
12 BAR / 18 BAR |
|
STANDARD NOZZLE TYPE |
JET SPARY—ABS / BRASS |
JET SPRAY—ABS / BRASS |
|
.FLOW RATE @ 4 KG/CM2(G) |
34 LPM |
44 LPM |
|
PAINTING |
RAL 3000 OR CUST. REQUIREMENT |
RAL 3000 OR CUST. REQUIREMENT |
Hose Reel Nozzle, Shut-Off type, 19 mm / 25 mm size, for projecting water in form of solid jet. The nozzle shall be have 6 mm / 8 mm bore outlet, and shall give a good range jet (min. 6 mtr). Nozzle shall have shut-off arrangement, and shall be suitable for connecting to ¾” / 1” hose.
|
GENERAL DATA |
|
|
Model |
Hose Reel Shut Off Nozzle |
|
Inlet |
Male end (serrated) suitable for ¾” / 1” hose |
|
Outlet |
Solid Jet |
|
MATERIAL OF CONSTRUCTION |
||
|
Model |
KFPSHN-1 |
KFPSHN-2 |
|
Parts |
SS 304 |
Gun Metal |
|
Nozzle Body & Parts |
SS 304 |
Gun Metal |
|
TESTING AND SPECIFICATIONS |
||||
|
Model |
Operating Pressure |
Inlet |
Hydro Testing Pressure |
Performance Requirement |
|
All |
Upto 10 Kg/cm2(g) |
Male end (serrated) suitable for ¾” / 1” hose |
14 Kg/cm2(g) for 2.5 Minutes |
6 Meters Solid Jet Throw. |
Hose Reel Nozzle, Jet/Spray type, 19 / 25 mm size, for projecting water in form of hollow jet or spray. The nozzle shall give a good range jet (min. 6 mtr) and narrow/wide angle spray. Nozzle shall have inbuilt shut-off arrangement, and shall be suitable for connecting to ¾” / 1” hose.
|
GENERAL DATA |
|
|
Model |
Hose Reel Jet Spray Nozzle |
|
Inlet |
Male end (serrated) suitable for ¾” / 1” hose |
|
Outlet |
Jet / Spray |
|
MATERIAL OF CONSTRUCTION |
||
|
Model |
KFPJSN-1 |
KFPJSN-2 |
|
Parts |
GM |
PVC |
|
Nozzle Body & Parts |
Gun Metal |
PVC |
|
TESTING AND SPECIFICATIONS |
||||
|
Model |
Operating Pressure |
Inlet |
Hydro Testing Pressure |
Performance Requirement |
|
All |
Upto 10 Kg/cm2(g) |
Male end (serrated) suitable for ¾” / 1” hose |
14 Kg/cm2(g) for 2.5 Minutes |
6 Meters Solid Jet Throw. |
|
MODEL |
MSHSD-FT-19-30 |
MSHSD—FT-25-30 |
|
DISC DIAMETER |
565 MM |
565 MM |
|
INLET CONNECTION |
Fixed Pipe 1” BSP |
Fixed Pipe 1” BSP |
|
HOSE SIZE (DIA. X LENGTH) |
19 MM X 30 METERS |
25 MM X 30 METERS |
|
DIMENSION (A X B X C) |
235 MM X 565 MM X 160 MM |
265 MM X 565 MM X 190 MM |
|
MAX W. P. / TEST PRESSURE |
12 BAR / 18 BAR |
12 BAR / 18 BAR |
|
STANDARD NOZZLE TYPE |
JET SPARY—ABS / BRASS |
JET SPRAY—ABS / BRASS |
|
.FLOW RATE @ 4 KG/CM2(G) |
34 LPM |
44 LPM |
|
PAINTING |
RAL 3000 OR CUST. REQUIREMENT |
RAL 3000 OR CUST. REQUIREMENT |
|
MODEL |
MSHSD-FTB-19-30 |
MSHSD—FTB-25-30 |
|
DISC DIAMETER |
565 MM |
565 MM |
|
INLET CONNECTION |
Fixed Pipe 1” BSP |
Fixed Pipe 1” BSP |
|
HOSE SIZE (DIA. X LENGTH) |
19 MM X 30 METERS |
25 MM X 30 METERS |
|
DIMENSION (A X B X C) |
235 MM X 565 MM X 160 MM |
250 MM X 565 MM X 190 MM |
|
MAX W. P. / TEST PRESSURE |
12 BAR / 18 BAR |
12 BAR / 18 BAR |
|
STANDARD NOZZLE TYPE |
JET SPARY—ABS / BRASS |
JET SPRAY—ABS / BRASS |
|
.FLOW RATE @ 4 KG/CM2(G) |
34 LPM |
44 LPM |
|
PAINTING |
RAL 3000 OR CUST. REQUIREMENT |
RAL 3000 OR CUST. REQUIREMENT |
|
MODEL |
MSHSD-FTB-19-30 |
MSHSD—FTB-25-30 |
|
DISC DIAMETER |
565 MM |
565 MM |
|
INLET CONNECTION |
Fixed Pipe 1” BSP |
Fixed Pipe 1” BSP |
|
HOSE SIZE (DIA. X LENGTH) |
19 MM X 30 METERS |
25 MM X 30 METERS |
|
DIMENSION (A X B X C) |
235 MM X 565 MM X 160 MM |
250 MM X 565 MM X 190 MM |
|
MAX W. P. / TEST PRESSURE |
12 BAR / 18 BAR |
12 BAR / 18 BAR |
|
STANDARD NOZZLE TYPE |
JET SPARY—ABS / BRASS |
JET SPRAY—ABS / BRASS |
|
.FLOW RATE @ 4 KG/CM2(G) |
34 LPM |
44 LPM |
|
PAINTING |
RAL 3000 OR CUST. REQUIREMENT |
RAL 3000 OR CUST. REQUIREMENT |
|
MODEL |
MSHSD-MF-19-30 |
MSHSD—MF-25-30 |
|
DISC DIAMETER |
565 MM |
565 MM |
|
INLET CONNECTION |
19 mm MS Pipe |
25 mm MS Pipe |
|
HOSE SIZE (DIA. X LENGTH) |
19 MM X 30 METERS |
25 MM X 30 METERS |
|
SWING DIMENSION (A X B X |
535 MM X 565 MM X 160 MM |
565 MM X 565 MM 190 MM |
|
CLOSE DIMENSION (L X W X D) |
235 MM X 565 MM X 160 MM |
265 MM X 565 MM X 190 MM |
|
MAX W. P. / TEST PRESSURE |
12 BAR / 18 BAR |
12 BAR / 18 BAR |
|
STANDARD NOZZLE TYPE |
JET SPARY—ABS / BRASS / Shutoff |
JET SPRAY—ABS / BRASS / Shut Off |
|
FLOW RATE @ 4 KG/CM2(G) |
34 LPM |
44 LPM |
|
PAINTING |
RAL 3000 OR CUST. REQUIREMENT |
RAL 3000 OR CUST. REQUIREMENT |
|
SIZE OF HOSE |
3/4” (19 MM) |
1” (25 MM) |
1 1/4” (32 MM) |
1 1/2” (40 MM |
|
MAX. WORKING PRES SURE |
15 Bar (23 PSI) |
15 Bar (23 PSI) |
15 Bar (23 PSI) |
15 Bar (23 PSI) |
|
OVER ALL DIMENSION |
700mm (H) x 750mm (W) x 650mm (D) |
700mm (H) x 750mm (W) x 650mm (D) |
700mm (H) x 1000mm (W) x 650mm (D) |
700mm (H) x 1000mm (W) x 650mm (D) |
|
FLOW RATE @ 5 BAR (72 PSI) |
40 LPM |
50 LPM |
290 LPM |
290 LPM |
|
THROW @ 5 BAR (72 PSI) |
20 Meters |
20 Meters |
20 Meters |
20 Meters |
|
SIZE OF HOSE |
3/4” (19 MM) |
1” (25 MM) |
1 1/4” (32 MM) |
1 1/2” (40 MM |
|
MAX. WORKING PRES SURE |
15 Bar (23 PSI) |
15 Bar (23 PSI) |
15 Bar (23 PSI) |
15 Bar (23 PSI) |
|
OVER ALL DIMENSION |
700mm (H) x 750mm (W) x 650mm (D) |
700mm (H) x 750mm (W) x 650mm (D) |
700mm (H) x 1000mm (W) x 650mm (D) |
700mm (H) x 1000mm (W) x 650mm (D) |
|
FLOW RATE @ 5 BAR (72 PSI) |
40 LPM |
50 LPM |
290 LPM |
290 LPM |
|
THROW @ 5 BAR |
20 Meters |
20 Meters |
20 Meters |
20 Meters |
|
SIZE OF HOSE |
3/4” (19 MM) |
1” (25 MM) |
1 1/4” (32 MM) |
1 1/2” (40 MM |
|
MAX. WORKING PRES SURE |
15 Bar (23 PSI) |
15 Bar (23 PSI) |
15 Bar (23 PSI) |
15 Bar (23 PSI) |
|
OVER ALL DIMENSION |
700mm (H) x 750mm (W) x 650mm (D) |
700mm (H) x 750mm (W) x 650mm (D) |
700mm (H) x 1000mm (W) x 650mm (D) |
700mm (H) x 1000mm (W) x 650mm (D) |
|
FLOW RATE @ 5 BAR (72 PSI) |
40 LPM |
50 LPM |
290 LPM |
290 LPM |
|
THROW @ 5 BAR |
20 Meters |
20 Meters |
20 Meters |
20 Meters |
|
SIZE OF HOSE |
3/4” (19 MM) |
1” (25 MM) |
3/4” (19 MM) |
1” (25 MM) |
|
TYPE |
RUBBER TYPE I |
RUBBER TYPE I |
RUBBER TYPE II |
RUBBER TYPE II |
|
WORKING PRESSURE |
9.6 KG/CM2 (G) |
9.6 KG /CM2 (G) |
16 KG/CM2 (G) |
16 KG/CM2 (G) |
|
BURST PRESSURE |
19 KG/CM2 (G) |
19 KG /CM2 (G) |
31.5 KG/CM2 (G) |
31.5 KG/CM2 (G) |
|
THROW @ 5 BAR |
20 Meters |
20 Meters |
20 Meters |
20 Meters |
|
SIZE OF HOSE |
3/4” (19 MM) |
1” (25 MM) |
3/4” (19 MM) |
1” (25 MM) |
|
TYPE |
THERMOPLASTIC TYPE I |
THERMOPLASTIC TYPE I |
THERMOPLASTIC TYPE II |
THERMOPLASTIC TYPE II |
|
WORKING PRESSURE |
9.6 KG/CM2 (G) |
9.6 KG /CM2 (G) |
16 KG/CM2 (G) |
16 KG/CM2 (G) |
|
BURST PRESSURE |
19 KG/CM2 (G) |
19 KG /CM2 (G) |
31.5 KG/CM2 (G) |
31.5 KG/CM2 (G) |
|
THROW @ 5 BAR |
20 Meters |
20 Meters |
20 Meters |
20 Meters |
