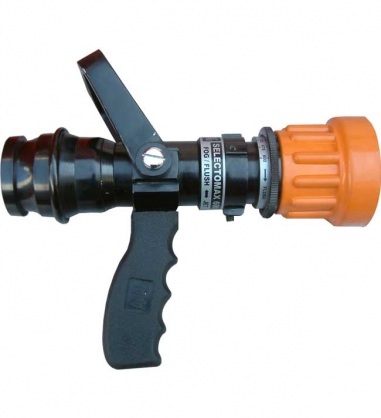

Handline Nozzles

Handline Nozzles in Gujarat

We are the leading Handline Nozzles Manufacturers in Gujarat and this product has garnered massive appreciation from the customers as well as contemporaries in the industry.

Besides handline nozzles, we also provide top class fire extinguishing products such as Water Foam Monitor and Fire Extinguisher Box at reasonable prices.

These handline nozzles have been specially designed for usage in the firefighting operations that are conducted manually and they help in providing a simple and reliable method for regular flow applications.

Further, these handline nozzles have been designed for imparting greater comfort and control as they are extremely durable and lightweight.

Generally, these nozzles are constructed using aluminum as these nozzles help in providing a unique fusion of solid stream and fog that helps in extinguishing the fire.

The nozzles help in the outflow of water at an extremely rapid rate without shutting down. They are equipped with the constant flow feature that helps in maintaining the same flow rate across the stream pattern selection.

Best Nozzles Suppliers in India

Add Mechatronics is the one of the best Nozzles Suppliers in India and these nozzles help the extinguisher, water gun, or water cannon in maintaining a linear stream through wide fog.

Some of these handline nozzles serve a long service life as they have a compact design and have pattern identification with larger and renowned labels.

Best Fire Nozzle Suppliers in Gujarat

These fire nozzles are easy to operate and simple to manufacture as they function by rotating 180 degrees from straight stream to fog type stream.

View our product range
Short Branch Pipe

Interested in this product?

Get Best Quote
Short Branch Pipe

Description

Short Branch Pipe with Nozzle, ISI marked, conforming to IS: 903, fitted with 6/ 12/ 16/ 20/ 25 mm bore nozzle, for projecting water in form of solid jet. The Branch shall have 63mm Male Instantaneous Inlet, suitable for use with 63 mm size Firefighting hoses. H.P. tested to 21 kgf/cm2 for 2.5 minutes.

              GENERAL DATA

Model

Short Branch Pipe with Nozzle

Inlet

63 mm Male Instantaneous / Storz Swivel / 2.5” BSP NPT Threads

Outlet

6/ 12/ 16/ 20/ 25 mm bore Solid Jet Nozzle



          MATERIAL OF CONSTRUCTION

Model

KFPSBP-1

KFPSBP-2

KFPSBP-3

Parts

Aluminum

SS 304

Gun Metal

Branch Pipe

Aluminum

SS 304

Gun Metal

Nozzle

Aluminum

SS 304

Gun Metal

Washer

Rubber

Rubber

Rubber



          Testing and Specifications

Model

Operating Pressure

Inlet

Hydro Testing Pressure

All

Upto 12 Kg/cm2(g)

63 mm Male Inst.

21 Kg/cm2(g) for 2.5 Minutes

Long Branch Pipe

Interested in this product?

Get Best Quote
Long Branch Pipe

Description

Long Branch Pipe with Nozzle, fitted with 6/ 12/ 16/ 20/ 25 mm bore nozzle, for projecting water in form of solid jet. The Branch shall have 63mm Male Instantaneous Inlet, suitable for use with 63 mm size Firefighting hoses. H.P. tested to 21 kgf/cm2 for 2.5 minutes.

              GENERAL DATA

Model

Long Branch Pipe with Nozzle

Inlet

63 mm Male Instantaneous / Storz Swivel / 2.5” BSP NPT Threads

Outlet

6/ 12/ 16/ 20/ 25 mm bore Solid Jet Nozzle



             MATERIAL OF CONSTRUCTION

Model

KFPLBP-1

KFPLBP-2

KFPLBP-3

Parts

Aluminum

SS 304

Gun Metal

Branch Pipe

Aluminum

SS 304

Gun Metal

Nozzle

Aluminum

SS 304

Gun Metal

Washer

Rubber

Rubber

Rubber



          Testing and Specifications

Model

Operating Pressure

Inlet

Hydro Testing Pressure

All

Upto 9 Kg/cm2(g)

63 mm Male Inst.

21 Kg/cm2(g) for 2.5 Minutes

Tripple Purpose Nozzle

Interested in this product?

Get Best Quote
Tripple Purpose Nozzle

Description

Triple purpose Nozzle, as per IS:2871, with option of projecting water in form of hollow jet or full, protective spray, and shall have facility of complete shut‐off. Nozzle shall have 63mm Male Instantaneous Inlet, and discharge outlet shall have rubber ring for protection, and fixed teeth for giving good quality spray. H.P tested to 21 kgf/cm2 for 2.5 minutes.

             GENERAL DATA

Model

Tripple Purpose Nozzle

Inlet

63 mm Male Instantaneous / Storz Swivel / 2.5” BSP NPT Threads

Outlet

Hollow Jet, Spray and Complete Shut off



            MATERIAL OF CONSTRUCTION

Model

KFPTPN-1

KFPTPN-2

KFPTPN-3

Parts

Aluminum

SS 304

Gun Metal

Body

Aluminum

SS 304

Gun Metal

Nozzle

Aluminum

SS 304

Gun Metal

Diffuser Valve

Aluminum

SS 304

Gun Metal

Diffuser Nut

Aluminum

SS 304

Gun Metal



          Testing and Specifications

Model

Operating Pressure

Inlet

Hydro Testing Pressure

Performance Requirement

All

5 - 12 Kg/cm2(g)

63 mm Male Instantaneous / Storz Swivel / 2.5” BSP NPT Threads

21 Kg/cm2(g) for 2.5 Minutes

Discharge Adjustable to Hollow Jet, Spray or complete Shut Off.

Fog Nozzle

Interested in this product?

Get Best Quote
Fog Nozzle

Description

Fog Nozzle, with option of projecting water in form of jet or fog, and shall have facility of complete shut‐off. Solid jet flow of 400 lpm (min), and fog of 225 lpm (min), fog range approx. 6 mtrs. Nozzle shall be 63mm Male Instantaneous Inlet, and matching fog applicator (optional). H.P. tested to 21 kgf/cm2 for 2.5 minutes.

            GENERAL DATA

Model

Tripple Purpose Nozzle

Inlet

63 mm Male Instantaneous / 2.5” BSP NPT Threads

Outlet

Solid Jet or Dense Fog Fog



        MATERIAL OF CONSTRUCTION

Model

KFPFGN-1

KFPFGN-2

KFPGN-3

Parts

Gun Metal

SS 304

SS 316

Body

Gun Metal

SS 304

SS 316

Bush

Gun Metal

SS 304

SS 316

Handle

Gun Metal

SS 304

SS 316

Fog Head

Gun Metal

SS 304

SS 316

Male Inst.

Gun Metal

SS 304

SS 316

Fog Applicator

Gun Metal

SS 304

SS 316





           Testing and Specifications

Model

Operating Pressure

Inlet

Hydro Testing Pressure

Performance Requirement

All

5 - 12 Kg/cm2(g)

63 mm Male Instantaneous / 2.5” BSP NPT Threads

21 Kg/cm2(g) for 2.5 Minutes

Discharge adjustable from Solid jet (400 lpm approx) to

Fog (225 lpm approx) to complete shut‐off. Fog applicator can be

fitted instead of fog head.s

Diffuser Nozzle

Interested in this product?

Get Best Quote
Diffuser Nozzle

Description

Diffuser nozzle, having Instantaneous Male Inlet adaptor, for use with 63 mm Hoses, capable of giving hollow jet, narrow fog and wide fog, as well as complete shut off while operating. H.P. tested to 21 kgf/cm2 for 2.5 minutes

GENERAL DATA

Model

Tripple Purpose Nozzle

Inlet

63 mm Male Instantaneous / 2.5” BSP NPT Threads / 2.5” Storz / Swivel

Outlet

Solid Jet or Narrow Fog or Wide Fog Dense Fog Fog



MATERIAL OF CONSTRUCTION

Model

KFPDFN-1

KFPDFN-2

KFPDFN-3

Parts

Aluminum

SS 304

Gun Metal

Body

Aluminum

SS 304

Gun Metal

Nozzle

Aluminum

SS 304

Gun Metal

Diffuser Valve

Aluminum

SS 304

Gun Metal

Deflector

Aluminum

SS 304

Gun Metal



Testing and Specifications

Model

Operating Pressure

Inlet

Hydro Testing Pressure

Performance Requirement

All

5 - 12 Kg/cm2(g)

63 mm Male Instantaneous / 2.5” BSP NPT Threads / 2.5” Storz / Swivel

21 Kg/cm2(g) for 2.5 Minutes

Discharge adjustable from Hollow jet, Dense Fog and Wide Fog to complete shut off

Revolving Nozzle

Interested in this product?

Get Best Quote
Revolving Nozzle

Description

63mm Revolving Nozzle, made of Gun Metal, as per IS:906 having 63mm Male Inst. Connection (Flange / Thread Connection also available). Nozzle shall be capable of giving good quality 3‐dimensional spray.

          GENERAL DATA

Model

Revolving Nozzle

Inlet

63 mm Male Instantaneous / 2.5” BSP NPT Threads

Outlet

3 Dimensional Spray



MATERIAL OF CONSTRUCTION

Model

KFPRVN-3

Parts

Gun Metal

Body

Gun Metal

Revolving Head

Gun Metal

Cap

Gun Metal

Ball Bearing

SS 304



Testing and Specifications

Model

Operating Pressure

Inlet

Hydro Testing Pressure

Performance Requirement

KFPRVN-3

5 - 12 Kg/cm2(g)

63 mm Male Instantaneous / 2.5” BSP NPT Threads

Not Applicable

Flow approx. 400 to 500 lpm at 7 kg/cm2 pressure, and to

give even, 3‐dimensional spray. Nozzle to begin rotating at 2 kg/cm2

pressure.

Curtain Nozzles

Interested in this product?

Get Best Quote
Curtain Nozzles

Description

Curtain nozzle, 63 mm size, made of Gunmetal with M.S. Plate Deflector, having flow of Ranging from 750 LPM to 6000 LPM, fitted with Male Instantaneous Inlet, suitable for use with 63 mm size hose, and giving semi‐circular spray pattern for radiant heat protection.

          GENERAL DATA

Model

Curtain Nozzle

Inlet

2.5” Male Inst / 2.5” BSP / NPT / NH Threads / Flanged Inlet

Outlet

Flat Spray Orifice



          MATERIAL OF CONSTRUCTION

Model

KFPCRN-3

Parts



Body / Inlet

Gun Metal

Deflector Plate

Mild Steel



                 Testing and Specifications

Model

Operating Pressure

Inlet

Hydro Testing Pressure

Performance Requirement

All

5 - 12 Kg/cm2(g)

2.5” Male Inst / 2.5” BSP / NPT / NH Threads / Flanged Inlet

Not Applicable

Flow approx. 750 to 6000 LPM

Select O Flow Nozzle

Interested in this product?

Get Best Quote
Select O Flow Nozzle

Description

Select‐O‐Flow nozzles, made of G.M. (chromium plated) / Aluminium – Gun Metal Combo, having rubber moulded pistol grip handle, and ball valve with shut off handle. Nozzle shall have flow rate settings of 150, 275, 300, 450 & 600 lpm at 7 kg/cm2, with positive locking mechanism for different settings, good range hollow jet, and dense fog in spray position.

GENERAL DATA

Model

Select O Flow Nozzle

Inlet

1.5”/2.5” Male Instantaneous, 1.5”/2.5” BSP/NST/NH threads, Other Inlets available on request

Outlet

Adjustable from hollow Jet to wide spray (spinning teeth)



           MATERIAL OF CONSTRUCTION

Model

KFPSOF-1

KFPSOF -2

Parts

Gun Metal

Aluminum / GM Combo

Nozzle Inlet Outlet

Gun Metal

Aluminum

Valve Body

Gun Metal

Gun Metal

Pistol Grip

Rubber

Rubber

Bumper

Rubber

Rubber



Testing and Specifications

Model

Operating Pressure

Inlet

Hydro Testing Pressure

Performance Requirement

All

5 - 12 Kg/cm2(g)

1.5”/2.5” Male Instantaneous, 1.5”/2.5” BSP/NST/NH threads, Other Inlets available on request

Not Applicable

Flow settings at approx. 150, 225, 350, 450, 600 lpm at 7

kg/cm2, to give good range hollow jet and dense fog in the wide

spray position. Complete shut off using On-Off handle.

Constant Flow Nozzle

Interested in this product?

Get Best Quote
Constant Flow Nozzle

Description:

constant flow nozzles, made of Aluminium alloy (anodized), having rubber moulded pistol grip handle, and ball valve with shut off handle. Nozzle shall have flow of 150 ‐ 600 lpm at 7 kg/cm2, with good range hollow jet (30 mtrs), and outlet shall have spinning teeth for dense fog in spray position.

            GENERAL DATA

Model

Constant Flow Nozzle

Inlet

1.5”/2.5” Male Instantaneous, 1.5”/2.5” BSP/NST/NH threads, Other Inlets available on request

Outlet

Adjustable from hollow Jet to wide spray (spinning teeth)



           MATERIAL OF CONSTRUCTION

Model

KFPCOF-1

Parts

Aluminum

Nozzle Body & Parts

Aluminum Alloy

Deflector

Gun Metal

Pistol Grip

Rubber Moulded

Bumper

Rubber



           Testing and Specifications

Model

Operating Pressure

Inlet

Hydro Testing Pressure

Performance Requirement

All

5 - 12 Kg/cm2(g)

1.5”/2.5” Male Instantaneous, 1.5”/2.5” BSP/NST/NH threads, Other Inlets available on request

Not Applicable

Flow test : nozzle at 25° elevation, in still wind conditions

Flow set between 150 – 600 lpm at 7 kg/cm2 (standard flow – 400 to 500 lpm), to give good range hollow jet approx. 30 mtrs at 400 lpm

flow, and dense fog in the wide spray position. Complete shut off

using On‐Off handle.

Automatic Nozzle

Interested in this product?

Get Best Quote
Automatic Nozzle

Description

Automatic Nozzle, made of Aluminium alloy (hard anodized), having rubbermoulded pistol grip handle, and ball valve with shut off handle. Nozzle shall have flow of approx. 500 lpm at 7 kg/cm2, with good range hollow jet (34 mtrs), and outlet shall have spinning teeth for dense fog in spray position.

        GENERAL DATA

Model

Automatic Nozzle

Inlet

1.5”/2.5” Male Instantaneous, 1.5”/2.5” BSP/NST/NH threads, Other Inlets available on request

Outlet

Adjustable from hollow Jet to wide spray (spinning teeth)



         MATERIAL OF CONSTRUCTION

Model

KFPAON-1

Parts

Aluminum

Nozzle Body & Parts

Aluminum Alloy

Inlet

Aluminum Alloy

Deflector

Gun Metal

Pistol Grip

Rubber Moulded

Bumper

Rubber



     TESTING AND SPECIFICATIONS

Model

Operating Pressure

Inlet

Hydro Testing Pressure

Performance Requirement

All

5 - 12 Kg/cm2(g)

1.5”/2.5” Male Instantaneous, 1.5”/2.5” BSP/NST/NH threads, Other Inlets available on request

Not Applicable

Flow approx. 500 lpm at 7 kg/cm2, to give good range hollow jet

approx. 34 mtrs, and dense fog in the wide spray position, with flush

arrangement. Complete shut off using On-Off handle.

View our category range
Hose Reel Drum in Gujarat

Interested in this product?

Get Best Quote
Hose Reel Drum

We are the best Hose Reel Drum Manufacturers in Gujarat and we have amassed a strong customer base all across the market.

Read More
Mobile Foam Trolley Unit in Gujarat

Interested in this product?

Get Best Quote
Mobile Foam Trolley Unit

We are one of the foremost Mobile Foam Trolley Unit Manufacturers in Gujarat, and our products have garnered immense praise and appreciation amongst the customers due to their amazing quality.

Read More
Fire Hose Box Cabinet in Gujarat

Interested in this product?

Get Best Quote
Fire Hose Box Cabinet

Add Mechatronics is one of the most reputed Fire Hose Manufacturers in Gujarat and this equipment is built using widely used and popular components at reasonable prices.

Read More
Fire Fighting Hose in Gujarat

Interested in this product?

Get Best Quote
Fire Fighting Hose

We are one of the most renowned Fire Fighting Hose Manufacturers in Gujarat and basically this hose is a high pressure fire fighting machine that has been attached to a fire engine or fire hydrant and it is extensively used by firefighters for carrying water.

Read More
Fire Extinguisher Box Cabinet in Gujarat

Interested in this product?

Get Best Quote
Fire Extinguisher Box Cabinet

We are one of the most highly acclaimed Fire Extinguisher Box Manufacturers in Gujarat, and we have garnered a lot of respect & acclaim from the market professionals at fairly reasonable prices.

Read More
Fire Extinguisher in Gujarat

Interested in this product?

Get Best Quote
Fire Extinguisher

We are highly sought after Fire Extinguisher Manufacturers in Gujarat, and we understand the importance of these extinguishers as they play the most important role in extinguishing the fire.

Read More
Water Foam Monitor in Gujarat

Interested in this product?

Get Best Quote
Water Foam Monitor

We are one of the most reputable Water Foam Monitor Manufacturers in Gujarat, and we have amassed a strong customer base by virtue of our top class products at fairly reasonable prices.

Read More
Water Foam Monitor Nozzle in Gujarat

Interested in this product?

Get Best Quote
Water Foam Monitor Nozzle

We are one of the foremost Water Foam Monitor Nozzle Manufacturers in Gujarat and we have acquired a strong customer base in a very short duration of time.

Read More
Foam Making Equipment in Gujarat

Interested in this product?

Get Best Quote
Foam Making Equipment

We are the best Foam Making Equipment Manufacturers in Gujarat and we have acquired richly supreme status in terms of reputation and credibility in the market.

Read More
Stand Post Hydrant in Gujarat

Interested in this product?

Get Best Quote
Stand Post Hydrant

We are extremely famous Stand Post Hydrant Manufacturers in Gujarat and we are a foremost organization when it comes to purchasing this type of fire fighting equipment.

Read More
Hydrant Valves in Gujarat

Interested in this product?

Get Best Quote
Hydrant Valves

We are regarded as the topmost Hydrant Valves Manufacturers in Gujarat and these valves are constructed using top grade material.

Read More
Trailer or Trolley mounted Water foam Monitors in Gujarat

Interested in this product?

Get Best Quote
Trailer or Trolley mounted Water foam Monitors

We are one of the most prominent Trolley Mounted Water Foam Monitors Manufacturers in Gujarat and we have generated a lot of claps and applause by virtue of our top class products.

Read More
Dry Riser Fittings in Gujarat

Interested in this product?

Get Best Quote
Dry Riser Fittings

We are one of the most in-demand Dry Riser Fittings Manufacturers in Gujarat and we have acquired a strong customer base in an extremely short duration of time.

Read More
Fire Protection and Extinguishing Systems in Gujarat

Interested in this product?

Get Best Quote
Fire Protection and Extinguishing Systems

We are one of the most remarkable Fire Protection System Manufacturers in Gujarat and we have acquired a respectable position in the community due to our amazing and state-of-the-art fire protection equipment.

Read More
Fire Suppression Systems in Gujarat

Interested in this product?

Get Best Quote
Fire Suppression Systems

One of the most remarkable Fire Suppression Systems Manufacturers in Gujarat, Add Mechatronics has been highly instrumental in carving a niche for themselves in the market owing to our excellent customer support system and amazing professionalism.

Read More
Frequently Asked Questions
FAQ
  • When Does the Product Get Dispatched?
    After attaining the confirmation of the payment, the goods will be dispatched within 7-10 working days depending on the quantity.
  • Where is Your Company Located?
    Our company is located in Gujarat and its precise location is Ahmedabad.
  • Is there Any Warranty?
    Yes, there is a warranty as in case of a manufacturing defect, we take the responsibility of changing or replacing the equipment.
  • What is the USP of this Site?
    The USP of Add Mechatronics is that besides supplying the products, they also help in the manufacturing of a wide variety of products.
What Our Client Says
Latest Testimonials
We provides always our best services for our clients and always try to achieve our client's trust and satisfaction.

“I purchased fire fighting equipment from Add Mechatronics and it was of top quality as it functioned well at the time of emergency usage and it was highly cost-effective as well.”

  • Ramesh
  • Ramesh

    New Delhi

“ My dream of purchasing a perfect IOT device was fulfilled when I got to know of Add Mechatronics and the quality & performance of the device was absolutely amazing.

  • Kirti
  • Kirti

    Rajasthan

“ I feel that this website is the best place to buy the products related to the Electronics and Automation category as they are designed and manufactured by their top class professionals who are highly adept in performing complex functions.”

  • Pawan
  • Pawan

    U.P.

© 2022 iThing Mechatronics LLP. All Rights Reserved.
Developed By Dewlogics
Send Enquiry s
