We are the best Foam Making Equipment Manufacturers in Gujarat and we have acquired richly supreme status in terms of reputation and credibility in the market.
Besides Foam Equipment, we also provide top class products like Handline Nozzles and Fire Extinguishers at fairly reasonable prices.
This product is like a boon for fighting professionals who belong to municipal fire brigades, petrochemical, chemical, pharmaceutical, and oil industries.
As far as this equipment is concerned, there is a wide variety to choose from such as foam chambers, foam makers, proportioning skids, bladder tanks, etc.
Further, this product is also used in fast response fire fighting trailers along with water and foam hydrants.
We are regarded as the best Foam Making Equipments Suppliers India and we have amassed a strong customer base by virtue of our top grade products for fire fighting professionals.
Since this equipment is tested under stringent and rigorous conditions, the durability of this product is just amazing and top class.
So, it can be safely stated that these products have been tested under extreme conditions and have proven reliability.
We are regarded as the most praiseworthy Foam Making Equipment Manufacturers in Gujarat and this is due to the fact that this product has been manufactured by using top grade material.
Also, we deploy top class professionals who are highly trained enough to handle all sorts of problems as far as problems related to fire fighting equipment is concerned.
These professionals are immensely experienced in their area of expertise and possess thorough knowledge about the product.
| Brand | KFP |
| Type | Fire Extinguisher |
| Material of Fire Fighting Equipment | MS Body |
| Condition | New |
| Portable | Yes |
| Installation Services Required | No |
We are highly acclaimed in this industry for providing an optimum quality range of Medium Expansion Foam Pourers.
| Application | Industrial, Commercial, Residential |
| Use | Foam Generation |
| Capacity | 225 |
| Material | Mild Steel |
| Usage/Application | Fire Fighting |
A FB 5X / 10X / 20 X Without Foam Induction
|
Description |
Type |
Flow |
Material of Construction |
|
Low Expansion Foam Nozzle without Foam Inductor |
2 X |
225 LPM |
Aluminum Stainless Steel |
|
10 X |
450 LPM |
||
|
20 X |
900 LPM |
| Material | Stainless Steel, Brass |
| Type | Sprayers |
| Usage | Fire Fighting |
| Flow Rate | 225 / 450 / 600 / 1100 |
| Pressure | 7 Kg/cm2(g) |
| Size | 63 mm |
|
Description |
Flow |
Material of Construction |
|
Inline Foam Generator |
225 LPM |
Aluminum Gun Metal |
|
450 LPM |
||
|
600 LPM |
||
|
900 LPM |
||
|
1800 LPM |
| Country of Origin | Made in India |
| Operating Pressure | 7 Kg/cm2(g) |
| Size | 63 mm |
| Medium Type | Foam |
| Material | Aluminum / Stainless Steel |
| Color | RED |
FB 5X With Foam Induction
|
Description |
Type |
Flow |
Material of Construction |
|
Low Expansion Foam Nozzle with Foam Inductor |
2 X |
225 LPM |
Aluminum Stainless Steel |
|
10 X |
450 LPM |
||
|
20 X |
900 LPM |
Fixed Inline Inductor, made of SS304, Flow range– 75 – 3600 lpm, Inlet-Outlet size upto 200 NB,flanges as per ANSI 16.5 150# (or as per request), with suitable size Foam compound inlet for specified induction rate. Inline Inductors shall have hydraulically efficient design, with maximum pressure drop across inductor not exceeding 35%.
|
Size of Inlet and Outlet |
Flow Rate at 7 Bar |
End connection |
|
2” |
75-225 LPM |
Inst. As per BS 336 Flanged as per ANSI |
|
2.5” |
225 – 450 LPM |
|
|
3” |
450 – 900 LPM |
|
|
4” |
900 – 1800 LPM |
|
|
6” |
1800 -2700 LPM |
|
|
8” |
2700 – 3600 LPM |
| Type | Foaming |
| Country of Origin | Made in India |
| Operating Pressure | 3 - 3.5 Kg/cm2 (g) |
| Size | 63 mm Male Instr. Inlet |
| Medium Type | Yes |
| Material | Stainless Steel |
| Condition | New |
|
Model No. |
Description |
Inlet |
Outlet |
Approvals |
Material of Construction |
|
MEX1-225-SA |
MEDIUM EXPANSION FOAM GENERATOR FOAM EXPANSION 50 TIMES |
63 MM MALE INST. |
FOAM DISCHARGE PIPE |
Not Applicable |
ALUMINUM Stainless Steel Gun Metal |
|
MEX1-450-SA |
63 MM MALE INST. |
||||
|
MEXF/T-112-SA |
1 1/2” NB ANSI Flanged 1 1/2” BSP M |
||||
|
MEXF/T-225-SA |
2” NB ANSI Flanged 2” BSP M |
||||
|
MEXF/T-450-SA |
2” NB ANSI Flanged 2” BSP M |
||||
|
MEXF/T-800-SA |
2 1/2” NB ANSI Flanged 2 1/2” BSP M |
||||
|
MEXF/T-1200-SA |
3” / 4” N’B ANSI Flanged 3” / 4” BSP M |
||||
|
MEXF/T-2000-SA |
3” / 4” N’B ANSI Flanged 3” / 4” BSP M |
||||
|
MEXF/T-112-SA |
3” / 4” N’B ANSI Flanged 3” / 4” BSP M |
|
Model No. |
Description |
Inlet |
Flow LPM |
No. of Nozzles |
Material of Construction |
|
FEFP-300-CS |
FOAM POURER EXPANSION 1 : 35 |
2” BSP Taper |
300 |
2 |
ALUMINUM Stainless Steel Gun Metal |
|
FEFP-600-CS |
2 1/2” BSP Taper |
600 |
3 |
||
|
FEFP-1200-CS |
3” BSP Taper |
1200 |
6 |
||
|
FEFP-1800-CS |
2” NB ANSI Flanged 2” BSP M |
1800 |
9 |
||
|
FEFP-2700-CS |
2” NB ANSI Flanged 2” BSP M |
2700 |
12 |
|
Part Description |
Material |
|
Sheet Work / Pipe Work |
Stainless steel |
|
Pelton Wheel |
Stainless steel |
|
Foam Mesh |
Flexible Nylon Net |
|
Nozzles |
Bronze |
|
Inlet Instantaneous Male |
Stainless steel |
|
Fan Blades |
Aluminum |
|
Inline Inductor |
Stainless Steel |
|
Performance |
Parameter |
|
Flow Testing |
225 to 250 LPM at 3.5 Kg/cm2(g) |
|
Foam Expansion |
1:270 at 3.5 Kg/cm2(g) |
|
Foam Expansion |
1 : 310 at 5.5 Kg/cm2(g) |
|
Foam Produced |
2825 cubic Feet / Minute |
|

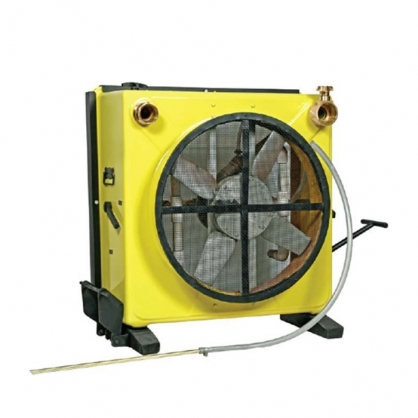

Description |
Operating Range |
Foam Produced |
Smoke Extracter |
Flow |
Material of Construction |
|
High Expansion Foam Generator - Mini |
2.5 to 7Kg/cm2 (g) |
2825 Cubic Feet / min. |
3460 Cubic ft /Min. |
245 LPM |
Stainless Steel |
| Model No. |
Description |
Inlet |
Outlet |
Approvals |
Material of Construction |
|
HEMI-225-SS |
HIGH EXPANSION FOAM GENERATOR—MINI |
63 MM MALE INST. |
FOAM DISCHARGE SMOKE EXTRACTION |
Not Applicable |
Stainless Steel MS (Powder Coated) |
|
Part Description |
Material |
|
Body |
FRP |
|
Pipe Work |
SS 304 / Gun Metal |
|
Turbine Body |
SS 304 |
|
Foam Mesh |
Flexible Nylon Net |
|
Nozzles |
Bronze |
|
Inlet – Outlet Adaptor |
Bronze |
|
Performance |
Parameter |
|
Flow Testing |
250 LPM at 7 Kg/cm2(g) |
|
Foam Expansion |
Foam Expansion (By Pass Closed): 5 Kg/cm2(g) approx.. 1:480, @ 7 Kg/cm2(g) approx. 1:540 (By Pass Open) 5 Kg/cm2(g) approx.. 1:800, @ 7 Kg/cm2(g) approx. 1:875 |
|
Model No. |
Operation Condition |
Inlet |
Outlet |
Approvals |
Material of Construction |
|
HEMX-225-F |
By Pass Valve Closed |
63 MM MALE INST. |
FOAM DISCHARGE PIPE |
Not Applicable |
Aluminum Brass |
|
By Pass Valve Open |
